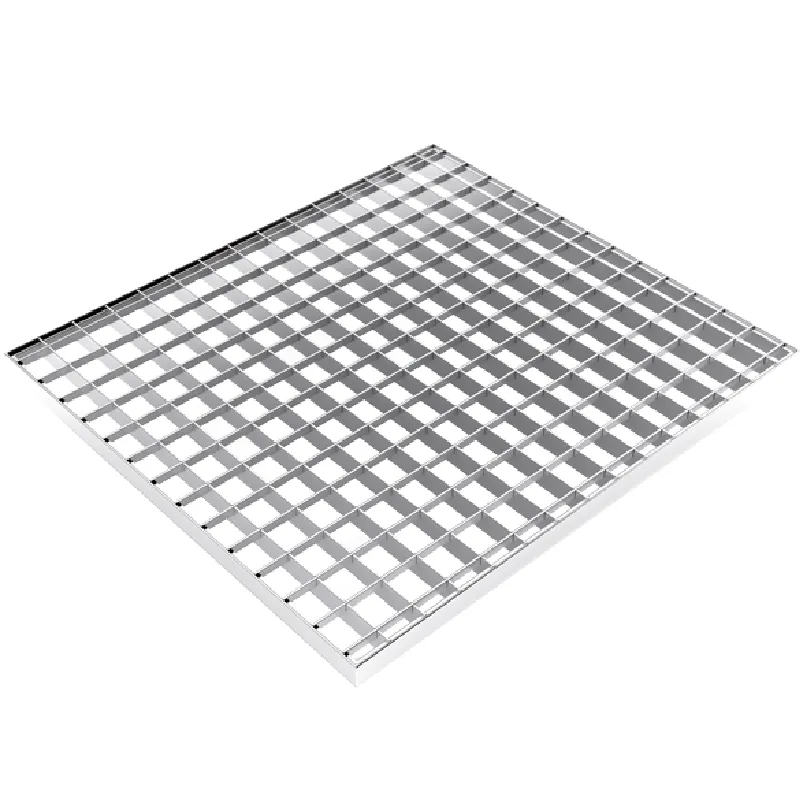

Press-Locked Steel Grating

Press-Locked Steel Grating
Short Description:

Press-locked steel grating can be used for ceilings, platforms and all kinds of covers in factories, floors, fences, civil and commercial buildings.


PDF Download
Product Detail
Product Tags
Introduction
Read More About serrated steel grating

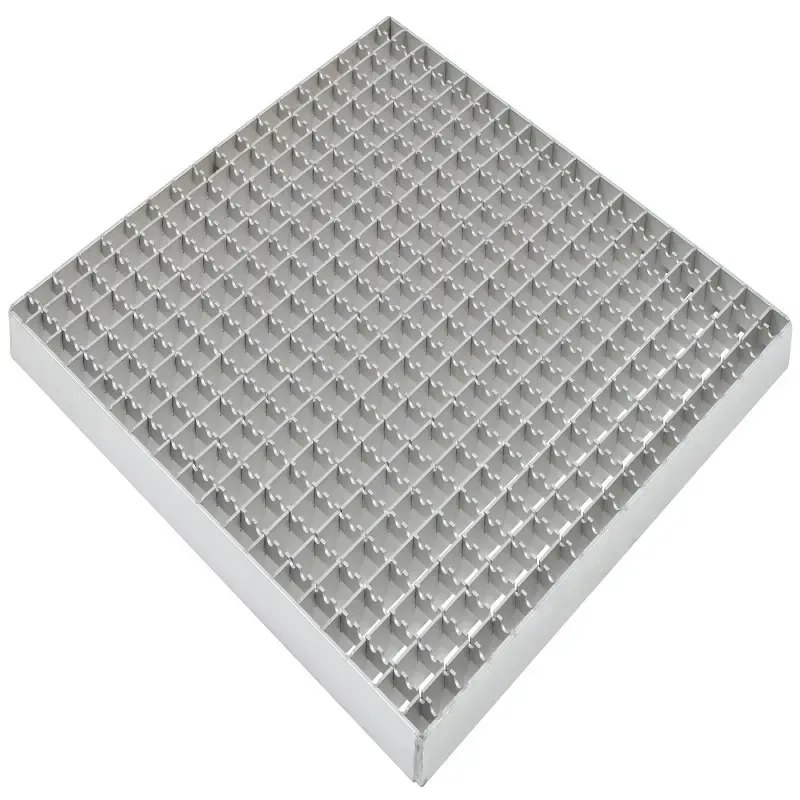

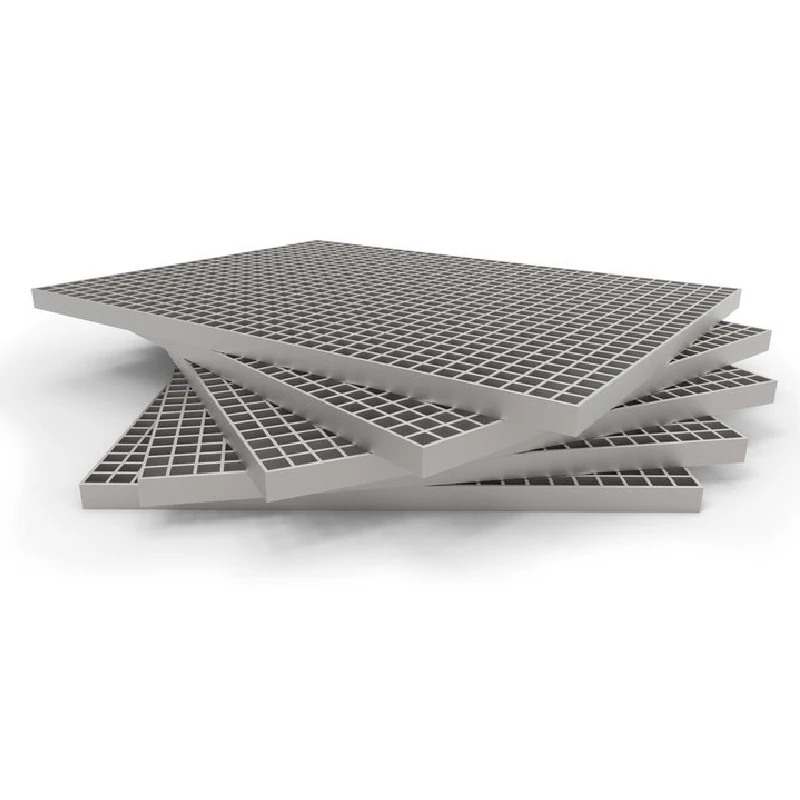

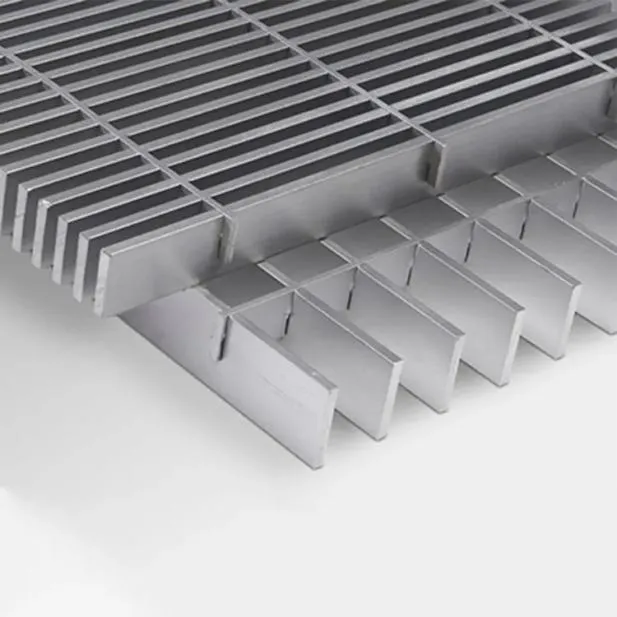

Press-locked steel grating also can be called pressure locked grating, pressed grating or pressure lock grating. It which is made of low carbon steel, stainless steel or aluminum. The press-locked grating is constructed with two close-tolerance slotted bars bonded together by tremendous hydraulic pressure. And this production can let press-locked grating be a permanent locking. With high strength and firm structure, it's widely used in industrial factories or parks, commercial buildings, municipal engineering as stair treads, platforms, walkways, security screens, tree covers, trench covers, drainage covers and so on. Serrated surface is also available for anti-slide effect.




Features
  • Light weight of aluminum press-locked bar grating.
  • High bearing capability and high strength.
  • Excellent lateral stiffness.
  • Non-silp. anti-corrosion.
  • Not easy to deform
  • Beautiful appearance.
  • Easy to install and remove.
  • Extended the lifespan.
  • 100% recyclable.



Specification
  • Material: Low carbon steel, stainless steel and aluminum.
  • Surface treatment: Galvanized, painted and powder coated.
  • Surface type: Standard plain surface, serrated surface.



  • Serrated surface type
  • Trapezoidal teeth on the bearing bar.
    • Trapezoidal tooth both on the bearing bar and cross bar with the highest non-slip performance. In this three types. it is most popular.
    • The non-slip tooth is applied to the connect components. It has the lowest non-slip performance.



  • Bearing bar type: plain bearing bar and serrated bearing bar.
  • Common mesh opening sizes: 33 mm × 33 mm, 33 mm × 11 mm.
  • Insertion mode: common type, integral type, heavy duty steel grating and louver steel grating.



  • Common type
  • After the grooving of bearing bar, the cross bar press locked and molded.
  • Maximum machining height of common steel grating is 100 mm, the length of steel grating is less than 2000 mm.
  • The standard height of bearing bar: 20 mm to 170 mm.
  • The standard thickness of bearing bar: 2 mm, 3 mm, 4 mm, 5 mm.



  • Integral type
    • The bearing bar of integral steel grating has the same height as cross bar. The grooving depth is 1/2 of bearing bar.
    • The height of the steel grating is less than 100 mm. and the length usually less than 2000 mm.
    • The standard height of bearing bar: 20 mm to 100 mm.
  • The standard thickness of bearing bar: 2 mm, 3 mm, 5 mm.



  • Heavy duty steel grating
    • Heavy duty steel grating is bit by bearing bar and cross bar in the 1200 tons of pressure under the molding. It is suitable for high load bearing occasions.
    • The standard height of bearing bar: 80 mm to 200 mm.
    • The standard thickness of bearing bar: 8 mm, 10 mm, 12 mm.



  • Louver steel grating
    • The bearing bar of louver steel grating open the chute with 30° or 45°. The cross bar grooved and press locked.
    • The grating height is less than 100 mm.
    • The standard height of bearing bar: 30 mm to 100 mm.
    • The standard thickness of bearing bar: 2 mm, 3 mm.





Application

Press-locked steel grating is widely used for the floor, ceiling, platform, fence, privacy screens, shelf, decoration of outer wall, sun visor, bridge and inner and spiral staircases in such place: large-scale shopping malls, construction industry, factories. subway stations, offshore drilling platforms, ships, terminals, other industrial and civil construction, etc.



  • Read More About mild steel grating

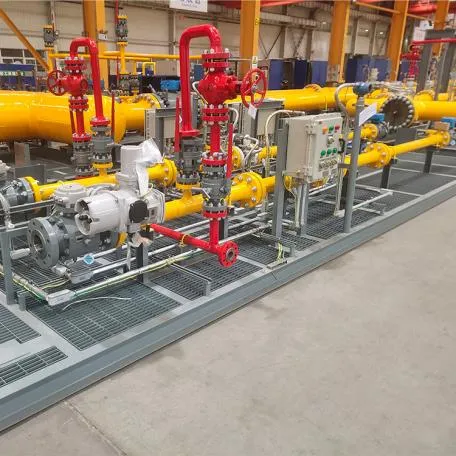

    Press Locked Steel Grating Oil

  • Read More About heavy duty steel grating price

    Press Locked Steel  Grating Apron Safety Platform

  • Read More About mild steel grating

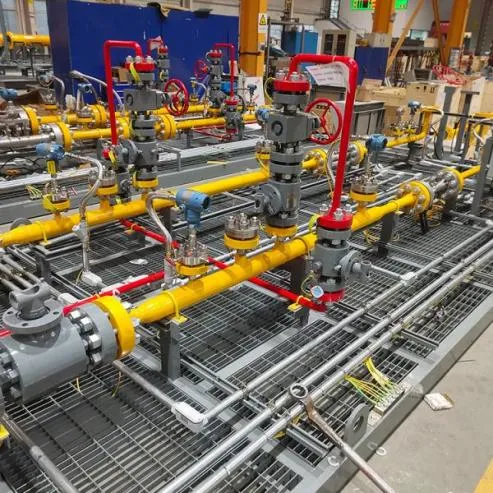

    Press Locked Steel Grating Industry Platform

  • Read More About heavy duty steel grating

    Steel Grating Stair Treads

  • Read More About heavy duty steel grating

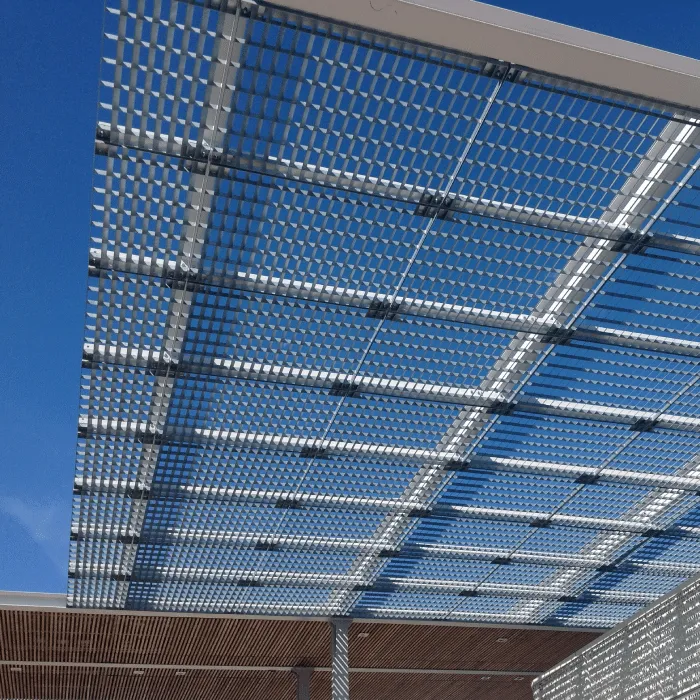

    Press Locked Steel Grating Sunshade

  • Read More About heavy duty steel grating price

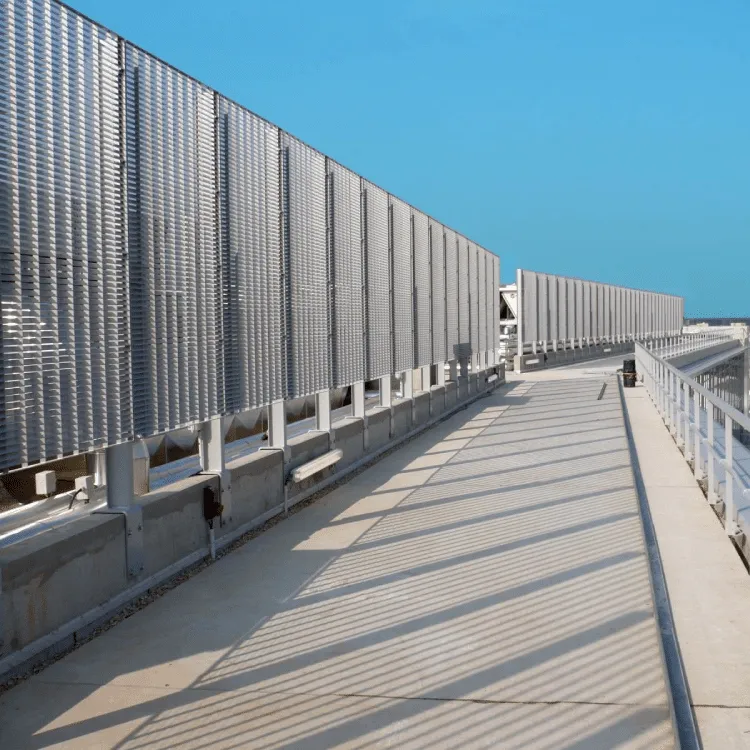

    Press Locked Steel Grating Bridge Fence

  • Read More About mild steel grating

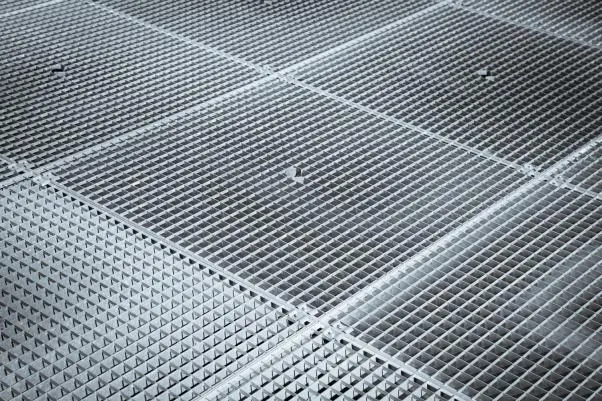

    Press Locked Steel Grating Industry Floor

  • Read More About serrated steel grating

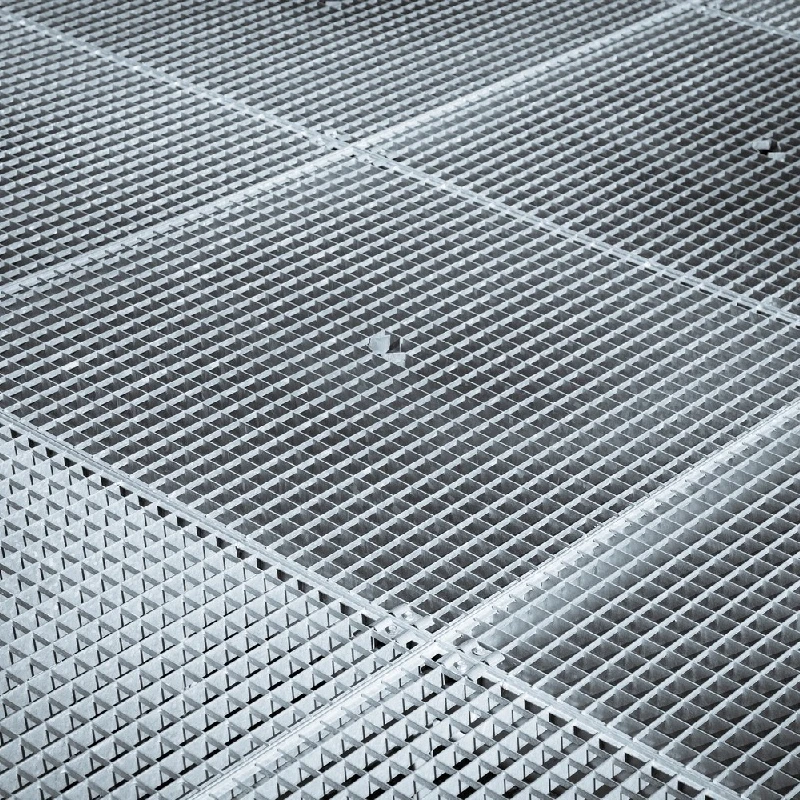

    Press Locked Steel  Grating Floor
