Shaker Screens in Drilling Operations: How to Maximize Separation Efficiency

Efficient separation of solids from drilling fluids is crucial for the smooth operation of drilling processes in the oil, gas, and mining industries. Shaker screens are central to this process, helping operators remove cuttings and other solids from drilling fluids, which reduces costs, minimizes environmental impact, and extends the life of drilling equipment. Maximizing separation efficiency is not only about choosing the right shaker screen but also about implementing proper operational practices. This article explores key strategies for optimizing shaker screen efficiency in drilling operations.

Understanding Shaker Screens and Their Role

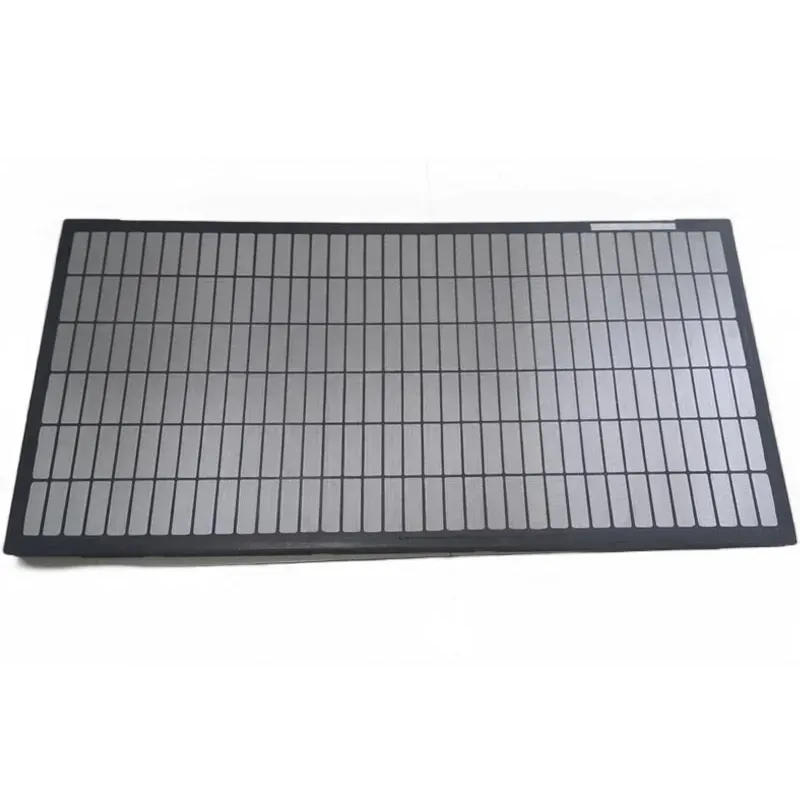

Shale shaker screen serve as the first line of defense in the solids control process, separating larger particles from drilling mud before it recirculates back into the drilling system. These screens are mounted on vibrating shakers, which use motion to force fluids through the screen mesh while holding back solids. The effectiveness of this process largely depends on factors such as screen mesh size, shaker settings, and mud properties. Effective separation means fewer disruptions in the drilling process, lower costs for drilling fluid maintenance, and improved environmental compliance by reducing waste.

Selecting the Right Shaker Screen Mesh Size

Choosing the right mesh size is one of the most significant factors for improving separation efficiency. Mesh size determines the size of particles that can pass through the screen, and it’s crucial to select a size compatible with the expected solid particle distribution in the mud. Finer meshes capture smaller particles, which is beneficial for cleaner drilling fluid but may result in lower fluid throughput and potential clogging. Coarser meshes allow greater flow but may permit smaller particles to remain in the drilling fluid. Balancing mesh size with operational needs can enhance efficiency by optimizing fluid cleanliness while maintaining adequate flow rates.

Optimizing Shaker Settings and Motion

Shaker settings such as speed, stroke length, and motion type play a major role in the effectiveness of shaker screens. There are three primary types of shaker motion: circular, linear, and elliptical. Each motion type impacts how effectively particles separate from the fluid, with linear motion often favored in modern systems due to its high efficiency in moving solids off the screen. Stroke length and speed also influence the separation process—higher speeds and longer strokes generally improve particle conveyance but may lead to increased wear on screens. Fine-tuning these settings to match mud properties and mesh size can maximize the efficiency of solids separation while preserving screen life.

Preventing Shaker Screens Blinding and Clogging

Screen blinding and clogging are common challenges in drilling operations that can significantly reduce shaker screen efficiency. Blinding occurs when particles become lodged in the screen mesh, blocking fluid flow. To minimize this, operators can use screens with specialized coatings or choose screens designed with self-cleaning mechanisms. Additionally, adjusting the angle of the shaker can help reduce blinding by improving particle movement. Regular cleaning and monitoring can help identify and resolve clogging issues before they impact the overall system’s efficiency. Taking preventative measures to keep screens clear ensures continuous flow and consistent separation.

Monitoring Drilling Mud Properties About Shaker Screens

The properties of drilling mud, such as viscosity and density, directly impact the performance of shaker screen mesh. High-density muds are typically more challenging to process, requiring adjustments in mesh size, shaker settings, or fluid additives to maintain effective separation. Monitoring mud properties throughout the operation helps in making timely adjustments to screen type and shaker settings. Proper mud conditioning can also support optimal screen performance. For instance, adding a viscosity-reducing agent can improve fluid flow through fine-mesh screens, allowing for enhanced separation and cleaner drilling fluid.

Regular Maintenance and Timely Screen Replacement of Shaker Screens

Regular maintenance and timely screen replacement are crucial for maintaining high separation efficiency. Over time, screens can wear out, develop tears, or lose mesh tension, leading to poor separation performance and potential equipment damage. Inspecting screens routinely for signs of wear, stretching, or tearing ensures they remain effective in trapping solids. Operators should also establish a schedule for screen replacement based on usage intensity and mud conditions. Consistent maintenance minimizes downtime, prevents costly breakdowns, and ensures that the shaker screen system operates at peak efficiency.
